11. Data dependencies between TaroWorks Objects, Forms & Jobs

Avatar
TaroWorks Support
  • Updated
Follow

Starting TaroWorks 7.5.X, you can use the Object/Field Dependencies in TaroWorks Tab to view how data is mapped and related across Forms, Jobs and TaroWorks Objects.

  1. Go to App Launcher and search Object/Field Dependencies in TaroWorks.
    data dependencies.png
  2. Click to view the data dependencies. This displays a table with all TaroWorks Form/Job dependencies, including:

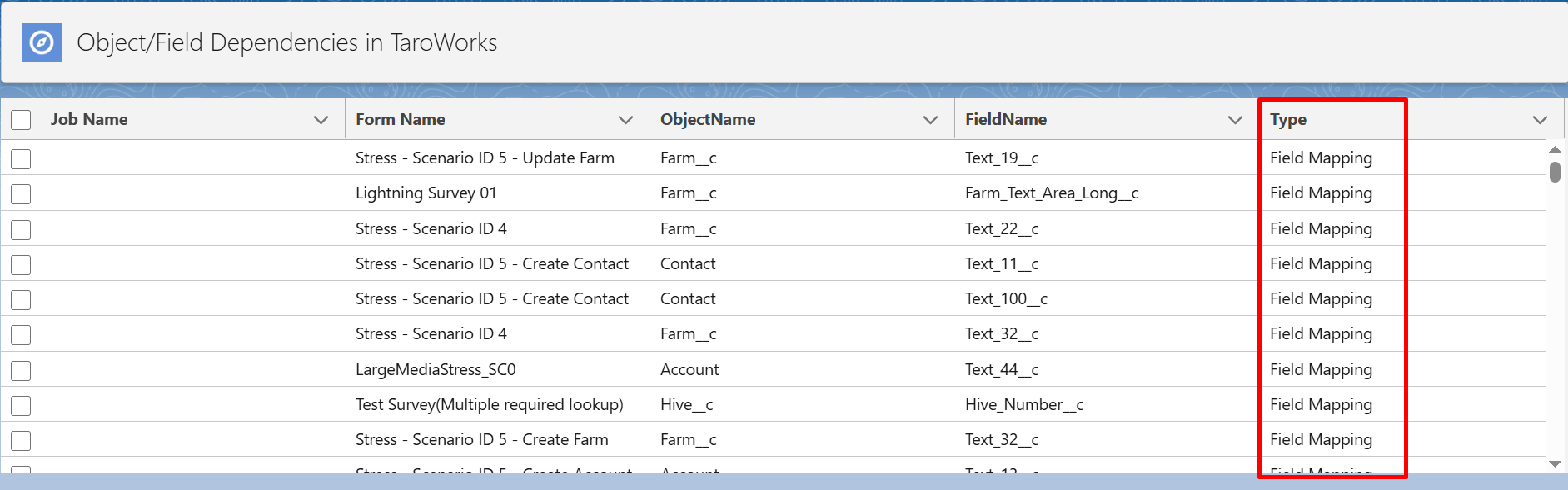

    • Question Field Mappings that reference a particular Object in the TaroWorks Forms.
       field mapping.png

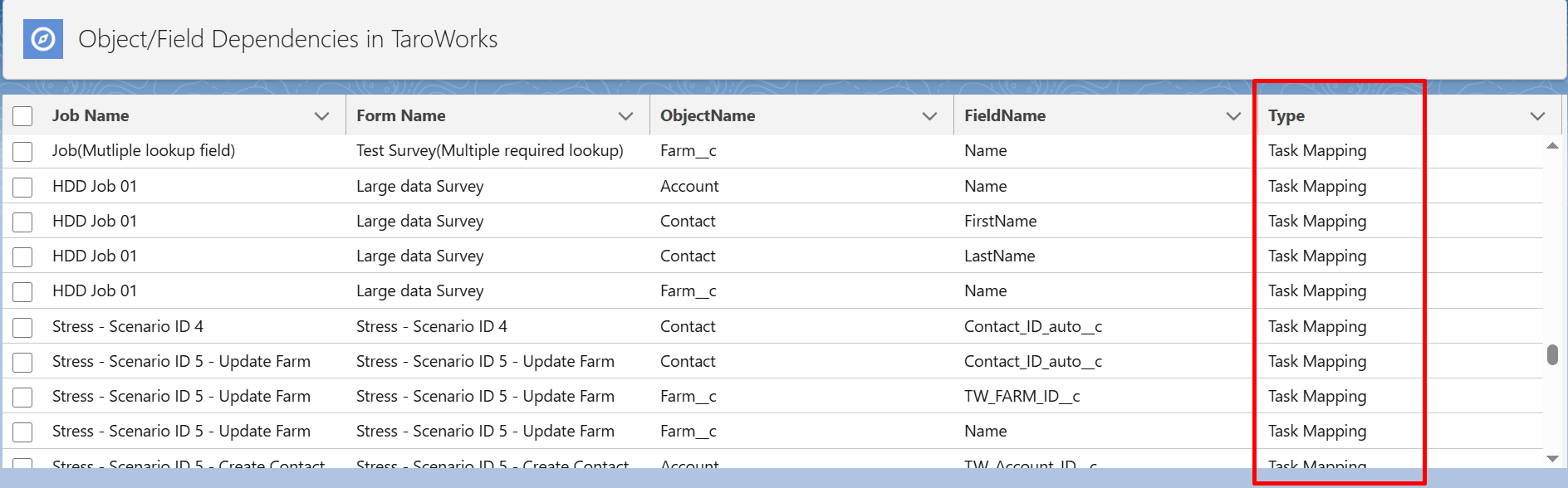

    • Form Task Mappings as set in the Drill Down Hierarchy in the TaroWorks Job.
       task mapping.png

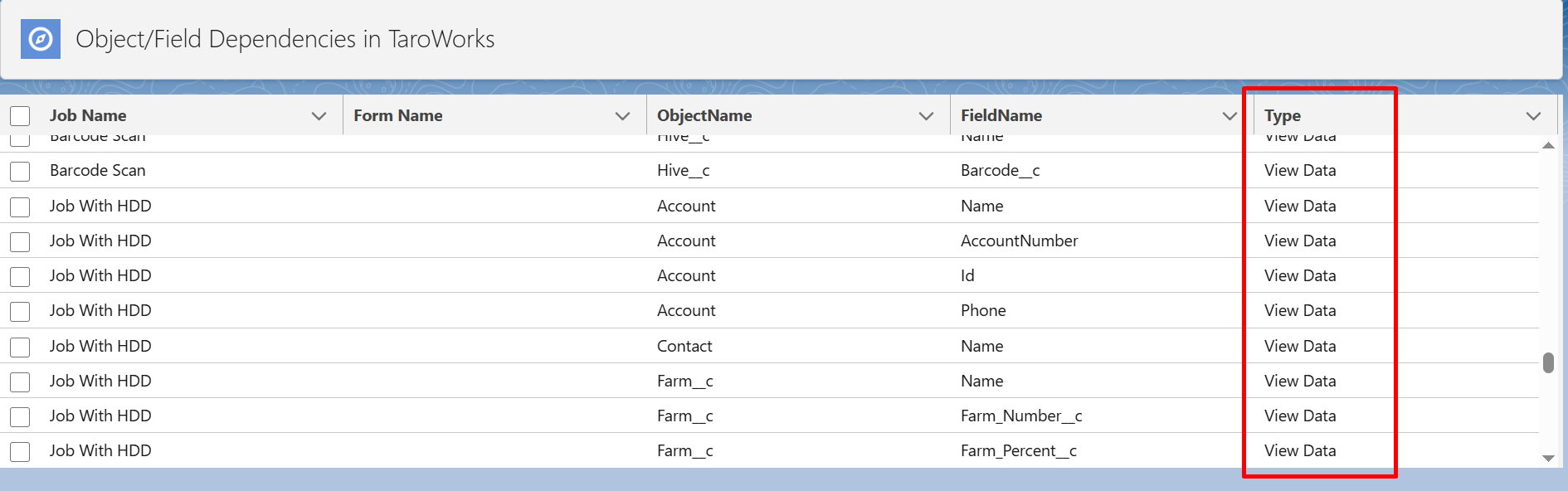

    • View Data Mappings as set in the Drill Down Hierarchy in the TaroWorks Job.
       view data 2.png

Notes:

  • A row shows up in the Dependencies Report if:
    • It’s used for field mapping in the Forms.
    • It’s used in a Drill Down Hierarchy that a Task Mapping references in a TaroWorks Job.
    • It’s used in a Job Drill Down Hierarchy that a View Data task references in a TaroWorks Job.
  • Fields only visible in the Drill Down Hierarchy do not show up in the Dependencies report.

Troubleshooting:

If there are very many Forms/Jobs dependencies that return more than 50,000 rows, it might cause a crash on the Object/Field Dependencies in TaroWorks View, resulting in a blank view.

The workaround is to execute a script that will send a CSV-formatted report to the email address of the user running the script.

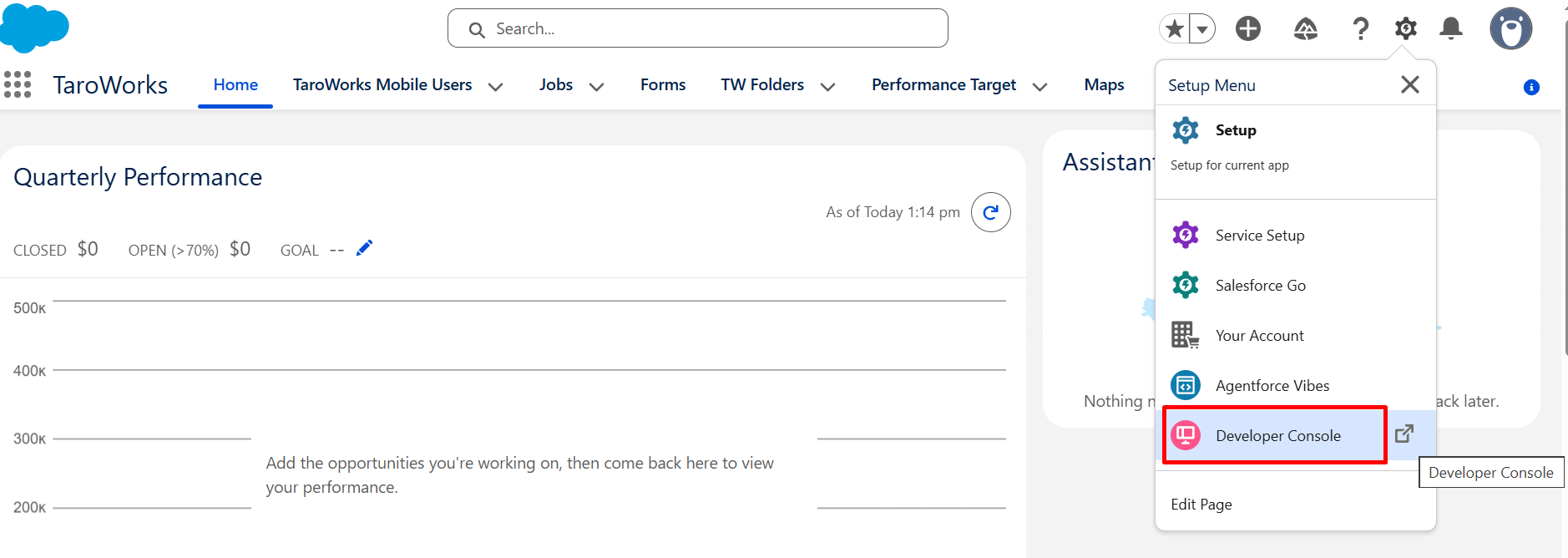

  1. Go to Setup>Developer Console.
    setup_developer console.png

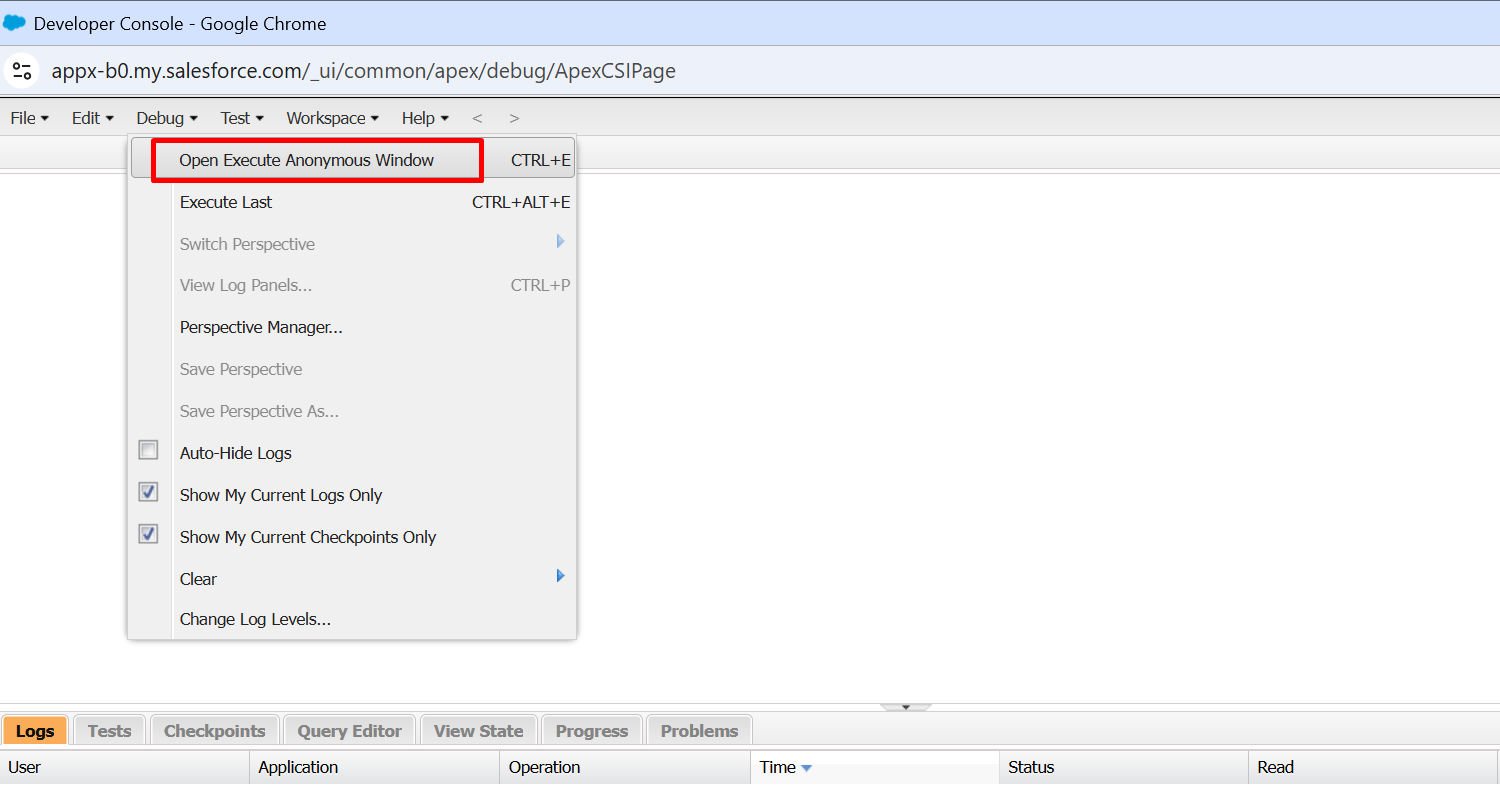

  2. Click Debug>Open Execute Anonymous.
    OPen execute anonymous.png

  3. Copy and paste the following script.

    /*/TAROWORKS #DEPENDENCY #SCRIPT ALL JOBS AND FORMS*/
/****
 * Helper Functions/Classes
****/


public class DDHItem{
    public String objectName;
    public String objectId;
    public List<String> listFields;
    public List<String> detailFields;
}

public class DDHArray{
    public List<List<DDHItem>> DDHItems;
}

public class TaskMapping {
    public String objectId;
    public String field;
}

public class TaskMappingArray{
    public List<TaskMapping> taskMappings;
}

public class DisplayResult {
    public String JobName;
    public String JobStatus;       // Add this
    public String FormName;
    public String FormStatus;      // And this
    public String ObjectName;
    public String FieldName;
    public String Type;
}


public List<TaskMapping> extractTaskMapping(gfsurveys__TaskTemplate__c taskTemplate) {
  List<TaskMapping> toReturn = new List<TaskMapping>();
  String jsonString = taskTemplate.gfsurveys__Mapping__c;
  if (jsonString == '[]')
    return toReturn;

  //Format the JSON better (is an array instead of an object)
  jsonString = '{"taskMappings":' + jsonString + '}';

  TaskMappingArray taskMappingDeserial = (TaskMappingArray) JSON.deserialize(jsonString, TaskMappingArray.class);

  for (TaskMapping thisMapping : taskMappingDeserial.taskMappings) {
    toReturn.add(thisMapping);
  }

  return toReturn;
}

public List<DDHItem> extractObjectFromDDH(gfsurveys__TaskTemplate__c taskTemplate) {
  List<DDHItem> toReturn = new List<DDHItem>();
  String jsonString = taskTemplate.gfsurveys__JobTemplate__r.gfsurveys__Hierarchy__c;
  if (jsonString == '[]')
    return toReturn;
  //Format the JSON better (is an array instead of an object)

  jsonString = '{"DDHItems":' + jsonString + '}';

  //Deserialize the JSON
  DDHArray ddhDeserial = (DDHArray) JSON.deserialize(jsonString, DDHArray.class);
  //Iterate through the DDHItems
  for (List<DDHItem> allItems: ddhDeserial.DDHItems) {
    for (DDHItem item: allItems) {
      toReturn.add(item);
    }
  }
  //Set the new list of items

  return toReturn;
}

/************************************************************************************************
 * Query Data
************************************************************************************************/

List<DisplayResult> allDependencies = new List<DisplayResult>();

//Three parts to query:
//1. Question Mappings that reference a particular object (Field Mappings in the Form)

List<AggregateResult> questionMappingResults = [
    SELECT
        gfsurveys__SurveyMapping__r.gfsurveys__Survey__r.Name,
        gfsurveys__SurveyMapping__r.gfsurveys__ObjectApiName__c,
        gfsurveys__FieldApiName__c
    FROM gfsurveys__QuestionMapping__c
    //WHERE gfsurveys__SurveyMapping__r.gfsurveys__Survey__r.gfsurveys__Status__c = 'Published'
    GROUP BY gfsurveys__SurveyMapping__r.gfsurveys__ObjectApiName__c,
            gfsurveys__SurveyMapping__r.gfsurveys__Survey__r.Name, gfsurveys__FieldApiName__c];

for(AggregateResult ar : questionMappingResults){
  DisplayResult fieldMapping = new DisplayResult();
  fieldMapping.JobName = '';
  fieldMapping.FormName = (String) ar.get('Name');
  fieldMapping.ObjectName = (String) ar.get('gfsurveys__ObjectApiName__c');
  fieldMapping.FieldName = (String) ar.get('gfsurveys__FieldApiName__c');
  fieldMapping.Type = 'Field Mapping';
  fieldMapping.JobStatus = '';
  fieldMapping.FormStatus = '';
  allDependencies.add(fieldMapping);
}

//2. Form Task Mappings (set in the DDH/Job Page)

List<gfsurveys__TaskTemplate__c> formFieldMappingResults = [
    SELECT
        gfsurveys__JobTemplate__r.Name,
        gfsurveys__JobTemplate__r.gfsurveys__Status__c,
        gfsurveys__JobTemplate__r.gfsurveys__Hierarchy__c,
        gfsurveys__Form__r.gfsurveys__Survey__r.Name,
        gfsurveys__Form__r.gfsurveys__Survey__r.gfsurveys__Status__c,
        gfsurveys__Mapping__c,
        gfsurveys__Object__c,
        gfsurveys__Type__c
    FROM gfsurveys__TaskTemplate__c
    WHERE gfsurveys__Type__c = 'form'
    //AND gfsurveys__JobTemplate__r.gfsurveys__Status__c = 'Published'
];

for(gfsurveys__TaskTemplate__c taskTemplate : formFieldMappingResults){
  List<DDHItem> allDDHObjs = extractObjectFromDDH(taskTemplate);
  List<TaskMapping> allTaskMappings = extractTaskMapping(taskTemplate);

  for (TaskMapping thisTaskMapping: allTaskMappings) {
    for(DDHItem thisDDHItem : allDDHObjs){
      if (thisDDHItem.objectId == thisTaskMapping.objectId) {
        DisplayResult fieldMapping = new DisplayResult();
        fieldMapping.JobName = taskTemplate.gfsurveys__JobTemplate__r.Name;
        fieldMapping.FormName = taskTemplate.gfsurveys__Form__r.gfsurveys__Survey__r.Name;
        fieldMapping.JobStatus = taskTemplate.gfsurveys__JobTemplate__r.gfsurveys__Status__c;
        fieldMapping.FormStatus = taskTemplate.gfsurveys__Form__r.gfsurveys__Survey__r.gfsurveys__Status__c;
        fieldMapping.ObjectName = thisDDHItem.objectName;
        fieldMapping.FieldName = thisTaskMapping.field;
        fieldMapping.Type = 'Task Mapping';
        allDependencies.add(fieldMapping);
      }
    }
  }
}


//3. View Data Mappings (set in the DDH/Job Page)
List<gfsurveys__TaskTemplate__c> viewDataMappingResults = [
    SELECT
    gfsurveys__JobTemplate__r.Name,
    gfsurveys__JobTemplate__r.gfsurveys__Status__c,
    gfsurveys__JobTemplate__r.gfsurveys__Hierarchy__c,
    gfsurveys__Object__c,
    gfsurveys__Type__c
FROM gfsurveys__TaskTemplate__c
WHERE gfsurveys__Type__c = 'data-view'
//AND gfsurveys__JobTemplate__r.gfsurveys__Status__c = 'Published'
];


for(gfsurveys__TaskTemplate__c taskTemplate : viewDataMappingResults){
  List<DDHItem> allDDHObjs = extractObjectFromDDH(taskTemplate);
    for(DDHItem thisDDHItem : allDDHObjs){
      if (thisDDHItem.objectId == taskTemplate.gfsurveys__Object__c) {
        Set<String> allFields = new Set<String>();
        allFields.addAll(thisDDHItem.listFields);
        allFields.addAll(thisDDHItem.detailFields);
        for(String fieldName : allFields) {
          DisplayResult fieldMapping = new DisplayResult();
          fieldMapping.JobName = taskTemplate.gfsurveys__JobTemplate__r.Name;
          fieldMapping.JobStatus = taskTemplate.gfsurveys__JobTemplate__r.gfsurveys__Status__c;
          fieldMapping.FormStatus = '';
          fieldMapping.FormName = '';
          fieldMapping.ObjectName = thisDDHItem.objectName;
          fieldMapping.FieldName = fieldName;
          fieldMapping.Type = 'View Data';
          allDependencies.add(fieldMapping);
        }
      }

  }
}

/************************************************************************************************
 * Display Results
************************************************************************************************/
public class DisplayResultSorter implements Comparator<DisplayResult> {
    public Integer compare(DisplayResult a, DisplayResult b) {
        Integer jobCompare = a.JobName.toLowerCase().compareTo(b.JobName.toLowerCase());
        if (jobCompare != 0) return jobCompare;

        return a.ObjectName.toLowerCase().compareTo(b.ObjectName.toLowerCase());
    }
}

// Display Results
allDependencies.sort(new DisplayResultSorter());

String csvContent = 'Type,JobName,JobStatus,FormName,FormStatus,ObjectName,FieldName\n';
for(DisplayResult singleResult : allDependencies){
    csvContent += '"' + singleResult.Type + '",' +
              '"' + singleResult.JobName + '",' +
              '"' + singleResult.JobStatus + '",' +
              '"' + singleResult.FormName + '",' +
              '"' + singleResult.FormStatus + '",' +
              '"' + singleResult.ObjectName + '",' +
              '"' + singleResult.FieldName + '"\n';
}

// Send CSV by email to tarowoks
Blob csvBlob = Blob.valueOf(csvContent);

String companyName = [SELECT Name FROM Organization LIMIT 1].Name;
String fileName = 'Published Jobs & Forms TaroWorks Dependency Report - ' + companyName + '.csv';

Messaging.EmailFileAttachment attachment = new Messaging.EmailFileAttachment();
attachment.setFileName(fileName);
attachment.setBody(Blob.valueOf(csvContent));
attachment.setContentType('text/csv');

Messaging.SingleEmailMessage mail = new Messaging.SingleEmailMessage();
mail.setToAddresses(new String[] { UserInfo.getUserEmail()});   // ← Updated recipient
mail.setSubject('TaroWorks Dependency Report - ' + companyName);
mail.setPlainTextBody('Please find the attached dependency report');
mail.setFileAttachments(new Messaging.EmailFileAttachment[] { attachment });

Messaging.sendEmail(new Messaging.SingleEmailMessage[] { mail });

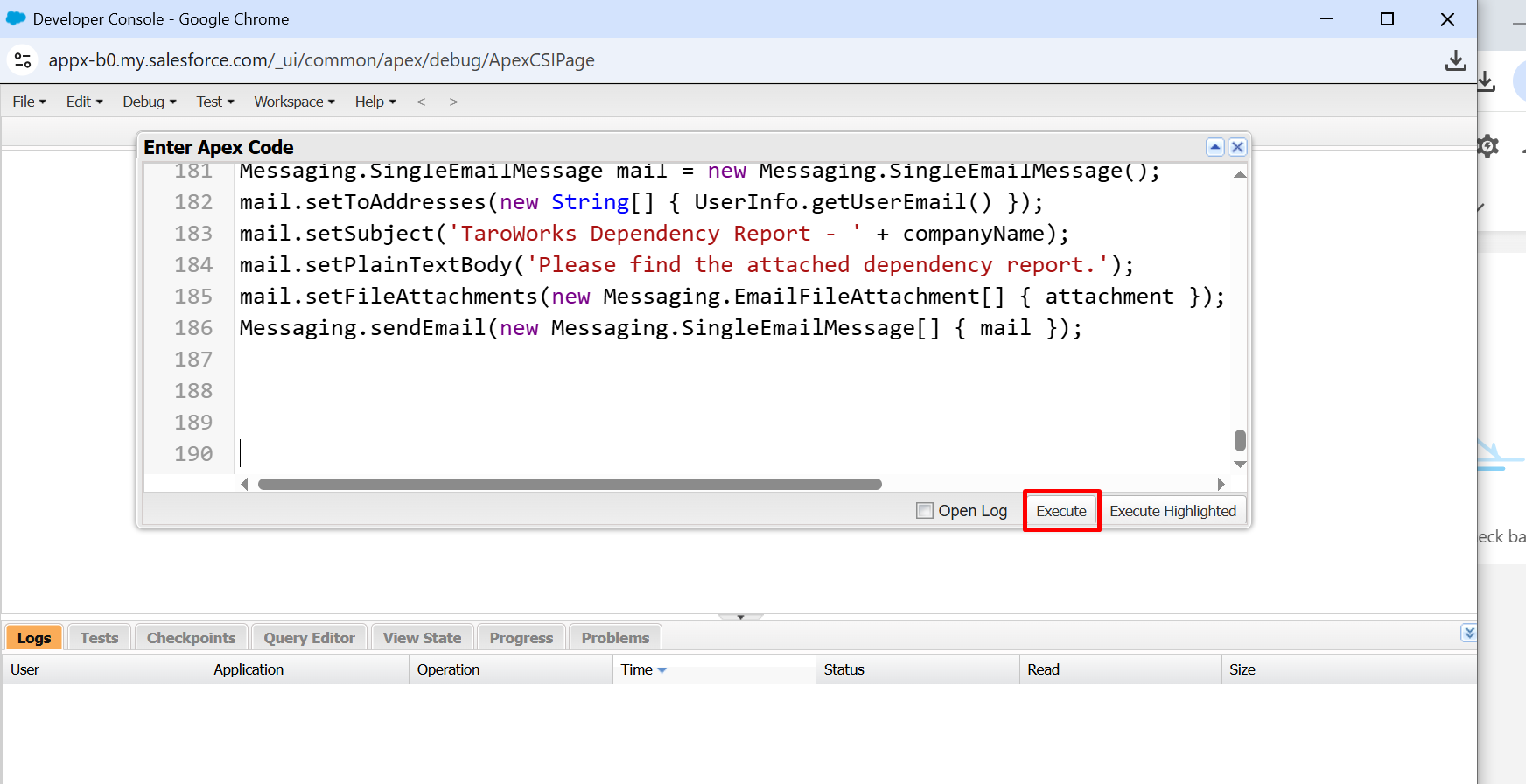

  4. Click Execute.
