08. How to Configure a Job to Ship a Transfer Order

Introduction

A Transfer Order is used when you want to track inventory movements within the organization. A Transfer Order results in the movement of inventory from a source warehouse to a destination warehouse.

This articles outlines how to configure the Form & Job that will Ship a Confirmed Transfer Order upon Sync.

• A. Configuring the Form
• B. Configuring the Job

Before you begin:

• This article assumes you know how to build TaroWorks Jobs
  • Building a New Job
  • Dynamic Operations

A. Configuring the Form

Question Builder Tab

In the Question Builder Tab, create the following Sections and Questions:

	Question	Question Type
Section Name: Order Details - Regular Section
Q1	Order ID**	Text
Q2	Expected Delivery Date	Text
Q3	Shipment Date*	Date

	Question	Question Type
Section Name: Review Request - Repeat Section
Q4	Order Line Item ID**	Text
Q5	Product Name	Text
Q6	Qty Ordered*	Number
Q7	Qty Shipped*	Number
Q8	Ship or Cancel	Picklist (Ship, Cancel)

	Question	Question Type
Section Name: Additional Shipments - Regular Section
Q9	Expecting Additional Shipments	Picklist (Yes, No)

	Question	Question Type
Section Name: Shipping Information - Repeat Section
Q10	Order Line Item ID**	Text
Q11	Product Name	Text
Q12	Qty Ordered*	Number
Q13	Qty Shipped	Number
Q14	Status	Picklist (Shipped, Confirmed, Cancelled)
Q15	Shorted	Picklist (Yes, No)

*Required

**Required and Hidden

Dynamic Operations

If you are new to Dynamic Operations, kindly refer to this article for better understanding and examples.

Q13 Qty Shipped: Sets to the value that was inputted for Qty Shipped.

Operation : Calculation
Javascript : var i = tw.shipping_information.currentIndex; var status = tw.review_request[i].ship_or_cancel.value; if (status == "Ship") { tw.shipping_information.current.qty_shipped.value = tw.review_request[i].qty_ordered.value; }

Q14 Status: Sets the status of the Taro Order Line Item depending on whether it has been cancelled or there are more shipments expected.

Operation : Calculation
Javascript : var i = tw.shipping_information.currentIndex; var status = "Cancelled"; var additional_shipments = tw.additional_shipments.expecting_additional_shipments.value; var ship_cancel = tw.review_request[i].ship_or_cancel.value; if (ship_cancel == "Ship") { if (additional_shipments == "No") { status = "Shipped"; } else { status = "Confirmed"; } } tw.shipping_information.current.status.value = status;

Q15 Shorted: Sets this flag to true if the Qty Ordered is not equal to Qty Shipped and there are no more Shipments expected.

Operation : Calculation
Javascript : var i = tw.shipping_information.currentIndex; var additional_shipments = tw.additional_shipments.expecting_additional_shipments.value; var shorted = "No"; if (tw.review_request[i].qty_ordered.value < tw.review_request[i].qty_shipped.value && additional_shipments == "No") { shorted = "Yes"; } tw.shipping_information.current.shorted.value = shorted;

Field Mapping Tab

The objects and relationships should resemble the image below:

	Question	Taro Order Line Item	Taro Order
Section Name: Order Details - Regular Section
Q1	Order ID		Order ID
Q2	Expected Delivery Date
Q3	Shipment Date	Last Shipment Date
Section Name: Review Request - Repeat Section
Q4	Order Line Item ID
Q5	Product Name
Q6	Qty Ordered
Q7	Qty Shipped
Q8	Ship or Cancel
Section Name: Additional Shipments - Regular Section
Q9	Expecting Additional Shipments
Section Name: Shipping Information - Repeat Section
Q10	Order Line Item ID	Order Line Item ID
Q11	Product Name
Q12	Qty Ordered
Q13	Qty Shipped	Last Qty Shipped
Q14	Status	Status
Q15	Shorted	Shorted Shipment

B. Configuring the Job

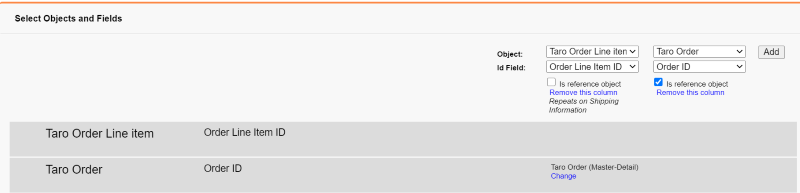

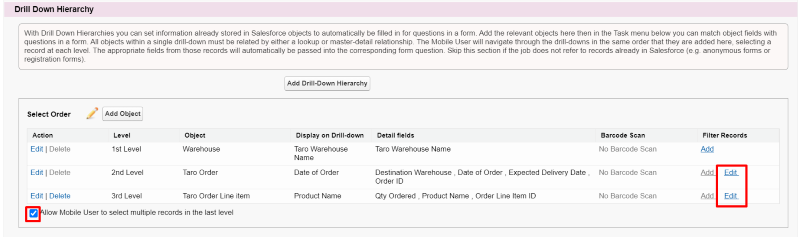

1. 1. Add a Drill Down Hierarchy with the objects and Fields as Follows:
      1. Check "Allow Mobile User to select multiple records in the last level"
      2. Set up filters on the Taro Order and Taro Order Line Item level of the Drill Down Hierarchy to show only in a Confirmed status

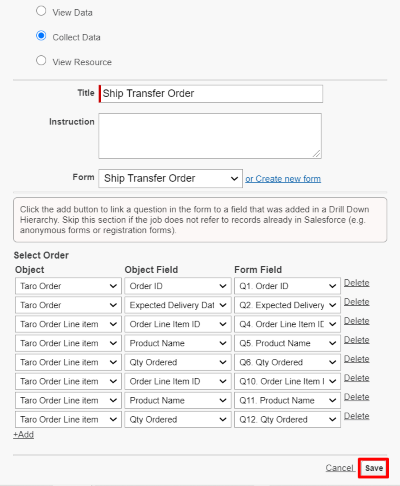

   2. Create a new Collect Data Task as shown below and link the task to the form you've created above with the following Task Mapping
   3. Click Save, Save the job again and Publish

NOTE: Always perform extensive testing on any jobs that you create before assigning them to your field staff.
